Delineating the edge of the pavement. Separate the road between both sideways or at the road shoulder. Very effective at channelling motor vehicle traffic and can provide some re-directive capacity for low-speed impacts
Key Features
- M-Concrete Lane Block have a vertical or nearly-vertical face, also called “barrier”, “non-mountable”, or “insurmountable shape”
- The installation at road shoulder will discourage drivers from parking or driving on sidewalks and lawns
- M-Concrete Lane Block can be used to channel runoff water from road surface
- Economical and long life span, it also can reusable to other locations
- Quick installation and dismantling works
- Improve aesthetic view

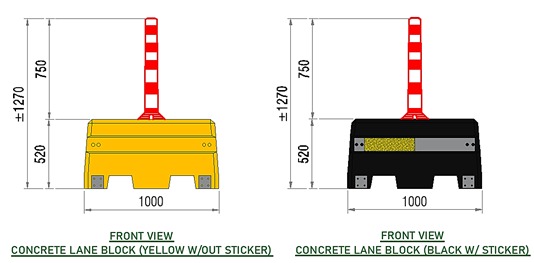

- Constructed with concrete Grade 25 and 30 in segmental block unit in size 1000mm length x 520 (+ -) mm height x 350mm width. It’s able to accommodate variable length and alignment needs by the road operator/designer by installing a few numbers unit’s e.g. 100 meter length with 100 units of block etc. The units joint by the connection pin in between in-order to have continuity lane barricades.
- The smaller size of M-Concrete Block 940mm length x 200mm height x 200mm width will be positioned on the 1st layer Unit. As such, a complete 600-meter height of M-Concrete Lane Block has been set
- A flat top surface also allow the road operator/designer to position any delineator aid e.g. flexible post, fence or anti-glare panel etc. for night time view enhancement
